The common assumption is simple: cut some holes, let the wind through, and the banner stays safer. The real answer is more complicated. Effectiveness depends on banner design, installation quality, exposure to wind, and sometimes local regulations that require or prohibit them altogether.
This article breaks down what wind slits actually do, where they fall short, and how mesh materials and proper mounting often outperform a few strategic cuts.
Key Takeaways
- Wind slits let some air pass through solid vinyl, but they don't eliminate wind force or guarantee safety.
- Small, isolated cuts may offer limited relief while creating weak points prone to tearing.
- Mesh banners, correct banner weight, reinforced finishing, and rated hardware typically outperform slits alone.
- Your decision should factor in size, placement, display duration, and local rules, not only whether you cut holes.
What Are Wind Slits on a Vinyl Banner?
A wind slit is a cut made directly into a solid vinyl banner, usually shaped like a half-moon, circle, or short line. These openings give wind a path through the material instead of letting it push against a solid sheet.
That reduces pressure on the banner, grommets, brackets, and poles holding it up.
This is different from mesh vinyl. Mesh banners have a distributed perforated structure woven throughout the entire material, letting air pass across the whole surface. Wind slits, by contrast, are isolated cuts added to an otherwise solid banner, typically just a handful of openings rather than a consistent pattern.
You'll find wind slits (or requirements for them) on:
- Temporary event banners
- Fence banners along construction sites or sports fields
- Wall-mounted signs
- Pole banners on city streetlights
- Bridge banners and signs spanning open areas
Before requesting or removing vents, check local rules. Los Angeles County requires slits on overhead banners exceeding 60 square feet displayed over a roadway. Portland's streetlight banner program requires vents specifically on non-mesh materials.
Neither rule applies universally. A fence banner in Salt Lake City won't necessarily follow the same standard as a banner suspended over a road in another city.
Where the Confusion Starts
Many people assume any hole helps equally. A single wind slit and a fully vented mesh panel behave very differently under load. The next section explains why.
Do Wind Slits Actually Reduce Wind Stress?
The basic physics: a solid surface catches more wind force than one with openings. That much is intuitive. What's less intuitive is how small those benefits often are in practice.

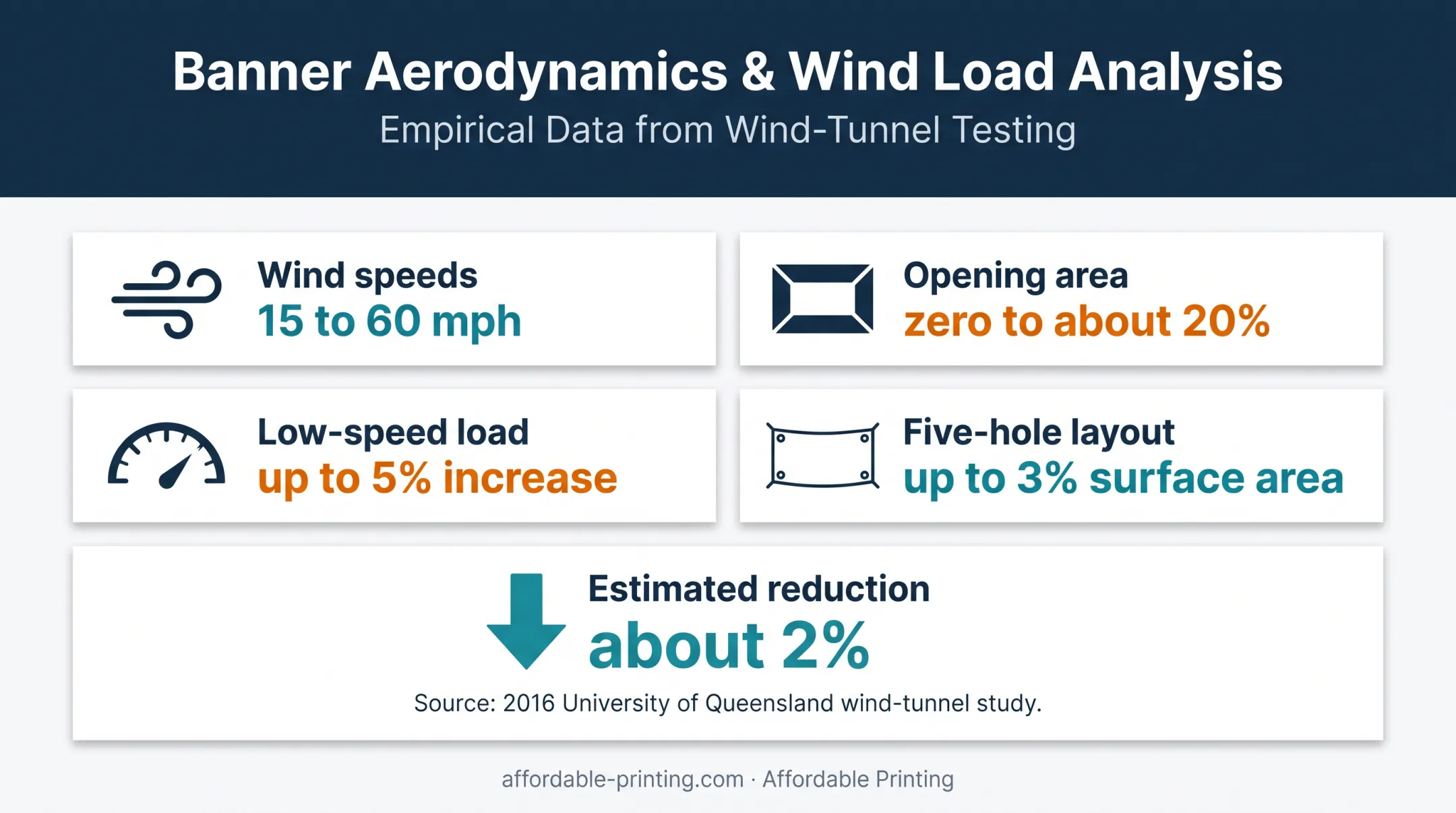

A 2016 wind-tunnel study from the University of Queensland tested rectangular holes and hinged flaps at wind speeds between roughly 15 and 60 mph. Researchers varied opening area from zero up to about 20% of the banner surface. The results were nuanced:
- Some vented configurations actually increased load by up to 5% at lower wind speeds.
- Load coefficients generally decreased as wind speed rose, especially once hinged flaps opened wider.
- Open holes performed better than hinged flaps overall.
- For one real-world layout, five holes totaling at most 3% of surface area produced an estimated wind load reduction of only about 2%.
That last figure matters. A 2% reduction is not a meaningful safety margin for most exposed installations.
The researchers noted that vents provide little benefit to a relatively flat, well-restrained banner unless the openings cover a substantial portion of the surface. Simply making the banner slightly smaller might achieve a comparable effect.
Why results vary so much:
- Wind speed changes how flaps and holes behave
- Opening shape and placement affect airflow patterns
- Banner tension determines whether it stays flat or billows
- Billowing banners behave aerodynamically differently from taut ones
- Mounting hardware influences how stress transfers through the system
A banner that billows freely fills with air like a sail, creating very different stress patterns than one kept taut against its frame. Cut edges also introduce local turbulence and concentrated stress right at the opening, something the wind-tunnel study didn't measure for tear propagation.
The practical takeaway: don't treat wind slits as a standalone wind-safety solution. They're not a substitute for correct material choice, proper tensioning, or professional installation.
What Problems Can Wind Slits Cause?

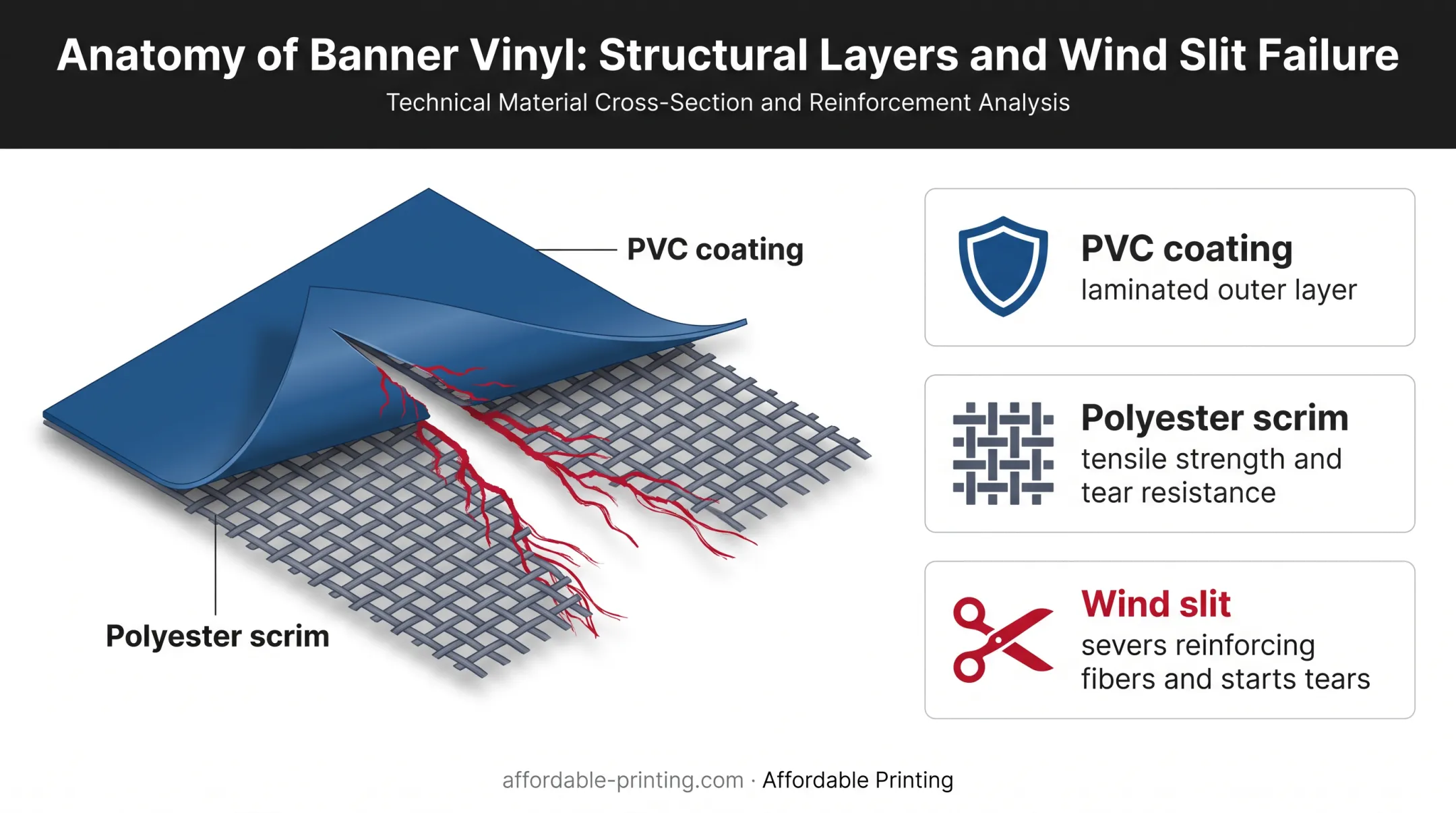

Cutting into vinyl doesn't just create an opening. It cuts straight through the reinforcing scrim or fibers embedded in the material.
Vinyl banner material typically consists of PVC coating laminated over a polyester scrim, which supplies tensile strength and tear resistance. Slice through that scrim, and you've created a starting point for a tear that can spread under repeated flapping and stress.
Banner manufacturers flag this risk: cutting slits severs woven reinforcing fibers and can hasten ripping over time. Some makers explicitly avoid offering wind slits for this reason.
Beyond Structural Concerns
Wind slits create appearance problems, too:
- Distorts logos, text, or photographs when slits cut through graphics
- Vent placement needs planning before production, not after
- Repeated flapping can enlarge existing openings over time
- Edges around cuts can fray with continued movement
- Nearby grommets may loosen from the added stress
Adding more openings doesn't necessarily solve these issues either. A handful of slits may not provide meaningful pressure relief, while cramming in more openings compromises the banner's structural continuity and visual layout.
Safety note: A damaged, poorly secured, or oversized banner should come down during severe weather. Don't rely on vents to protect people or property below or around the installation. High winds don't discriminate between a vented banner and a solid one that's already weakened.
What Are Better Options for Windy Conditions?
If wind exposure is a real concern, several approaches typically outperform a few cuts in solid vinyl.
Mesh Banners for Exposed Locations
Mesh material distributes airflow across the entire surface rather than concentrating it at a few points. Manufacturer specifications commonly list "air-flow through" ratings, such as 25%, 30%, or 37%, depending on the product line.
Important distinction: those percentages describe the material's open weave, not a guaranteed reduction in wind force once installed. A 30% air-flow mesh isn't automatically 30% safer than solid vinyl in a given windstorm.
Trade-offs to weigh:
- Mesh reduces image density and color vibrancy compared to solid vinyl
- Viewing distance matters more with mesh since fine detail reads less crisply up close
- Edge finishing still needs reinforcement; mesh isn't immune to mounting failures
Weight, Finishing, and Mounting
Finishing often matters more than material weight alone. A welded hem with consistently spaced grommets holds up better than a hemless banner or one with grommets only at the corners. Heavier vinyl does little extra if the edges and mount points aren't finished to match.
Ask your printer or installer about:
- Reinforced hems (welded or sewn)
- Grommet spacing and material
- Mounting hardware rated for the intended pole or frame
- Standoffs, bungees, or multi-point ties that spread stress instead of loading a few holes
Solid Vinyl vs. Mesh: A Quick Comparison
| Factor | Solid Vinyl | Mesh |
|---|---|---|
| Best for | Sheltered or short-term displays | Exposed, wind-prone locations |
| Image quality | Sharper colors and detail | Slightly reduced density |
| Airflow | None unless vented | Distributed across the surface |
| Wind performance | Depends heavily on mounting | Generally more forgiving in gusts |
No material is automatically suitable for every wind condition. Severe exposure, elevated installations, bridges, or street-spanning banners may call for a qualified installer or engineer, not just a material upgrade. Always confirm requirements with the property owner or permitting authority before finalizing your order.
How Should You Choose and Install an Outdoor Vinyl Banner?
Before ordering, run through a quick checklist:
- Banner dimensions relative to the mounting surface and its wind exposure
- Prevailing wind direction and whether the location sits in a wind tunnel between buildings
- Display duration, since a weekend event banner has different needs than a season-long installation
- Surrounding obstructions that could funnel or redirect wind
- Access for removal if severe weather is forecast
- Consequences of failure, especially near traffic, pedestrians, or property
Size the banner for its actual location instead of simply ordering the largest print area available. A banner that's technically correct for a sheltered wall might be entirely wrong for a fence line exposed to open wind.
Confirm these details with your printer before production begins:
- Grommet spacing and reinforcement type
- Hardware compatibility with your mounting surface
- Tensioning instructions for the installer
At Affordable Printing, we've produced custom banners and signs for Utah businesses, schools, and events since 2003. Clients like the Ogden Marathon and Salt Lake County count on outdoor signage built for real wind and weather.
Our team can review artwork placement, material selection, finishing options, and deadlines before you order, so the banner matches where it will actually go up.
Use wind slits only when required or specifically recommended for your installation. Otherwise, prioritize the right material and a professional mounting plan over a handful of cuts.
Frequently Asked Questions
What are wind slits on a banner?
Wind slits are openings cut into solid vinyl to let some air pass through, reducing wind pressure on the material. They don't remove the need for suitable material selection and proper installation.
What are the best banners for windy conditions?
Mesh banners, properly specified heavy-duty vinyl, reinforced finishing, and correctly rated mounting hardware all play a role. The best choice depends on your specific exposure and installation setup.
Do wind slits actually work on vinyl banners?
Vents can have some effect in certain conditions, but the benefit is often limited and comes with tear-risk trade-offs. Rely on tested materials and solid installation practices rather than slits alone.
Are mesh banners better than vinyl banners in windy weather?
Mesh typically handles airflow more evenly in exposed locations, while solid vinyl offers stronger image coverage in sheltered settings. Factor in print quality needs and mounting method before deciding.
Can I add wind slits to a banner after it's printed?
Cutting a finished banner risks damaging artwork and severing reinforcing fibers, which can create new tear points. Always check with your printer or installer before modifying a completed banner.
